2 Meter Parallel Cables – AP SYSTEMS Battery 5.12kWh 51.2V – Long Distance Connection
Main Features:
- Length: 2 meters
- Cross-section: 25 mm²
- Connectors: Amphenol SURLOK
- Supported current: 60A nominal (100Ah / 0.6C)
- High-conductivity tinned copper
- Insulation: rated up to 105°C
- Flexible multi-strand cable
- Assembly: Manual in France 🇫🇷
- Crimping: Certified hydraulic
- Contact resistance: < 0.5mΩ
Genuine parts, hydraulic crimping
Certified compatibility
Guaranteed delivery
Credit Card, PayPal, Bank Transfer
Key Features
- Authentic Amphenol connectors
- 25mm² cable section for maximum conductivity
- Compatible with Pylontech, BYD, and Goodwe batteries
- Complies with European safety standards
2-meter long-distance parallel connection cables for AP SYSTEMS APbattery 5.12kWh (51.2V / 100Ah) installations where batteries are not side by side. The APbattery is IP65-rated and can be installed indoors or outdoors; this 2m cable provides the flexibility needed for any configuration.
Why 2 meters for the APbattery 5.12kWh?
The APbattery 5.12kWh weighs 50kg and measures 460×165×652mm. In installations with multiple units (up to 32 in parallel for 163.84 kWh), batteries may be split across several locations. These 2m cables provide the needed flexibility without compromising electrical performance thanks to the 25mm² cross-section.

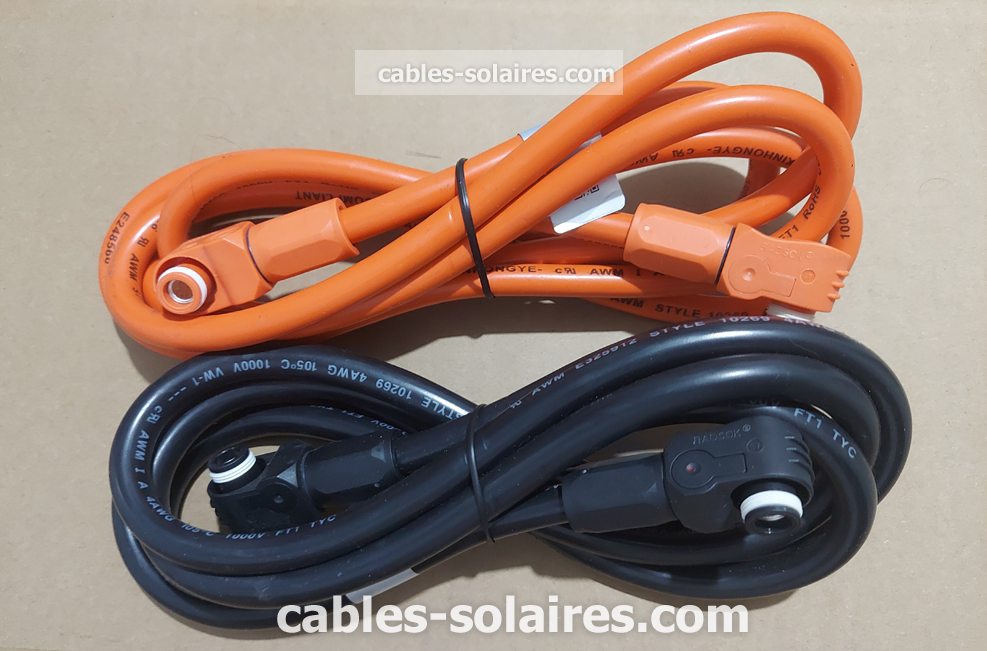

Kit contents:
- 1 positive (red) 25mm² cable – 2 meters with Amphenol SURLOK connector
- 1 negative (black) 25mm² cable – 2 meters with Amphenol SURLOK connector
- Pre-fitted and tested connectors – ready to plug in
Certified French assembly:
- Hydraulic crimping performed with certified tooling 🇫🇷
- High-conductivity tinned copper – minimal loss over length
- Reinforced insulation rated up to 105°C
- Flexible multi-strand cable for easy installation
Similar Products
Everything You Need to Know About 2 meter parallel cables – ap systems battery 5.12kwh 51.2v – long distance connection
Why Choose High-Quality Cables?
Parallel cables for Pylontech, BYD, and Goodwe batteries require optimal conductivity to ensure the efficiency of your energy storage system. Our products use high-purity copper and authentic Amphenol Surlock connectors to eliminate power losses.
French Assembly - A Quality Guarantee
All our cables are assembled in France by qualified technicians. Each connection is carefully crimped according to current standards, and each product undergoes rigorous quality control before shipment. Thus, you benefit from a reliable and durable solution for your installation.
Recommended Applications
These cables are perfectly suited for:
- Residential solar installations with energy storage
- Off-grid systems requiring reliable batteries
- Hybrid configurations combining grid and autonomy
- Existing storage capacity expansions
Guaranteed Compatibility
Our cables are compatible with all Pylontech lithium batteries (US2000, US3000, US5000), as well as equivalent BYD and Goodwe systems. Amphenol connectors ensure a perfect and secure connection.
